The Ultralight component set is the industry benchmark for top of the line high performance cycling.
Ultralight includes a lighweight wheelset, Formula Cura X hydraulic brakes with carbon levers and titanium screws, Helix carbon crankset and a lighter Shimano Ultegra drivetrain with 11 speeds, carbon handlebar and more.
Compare

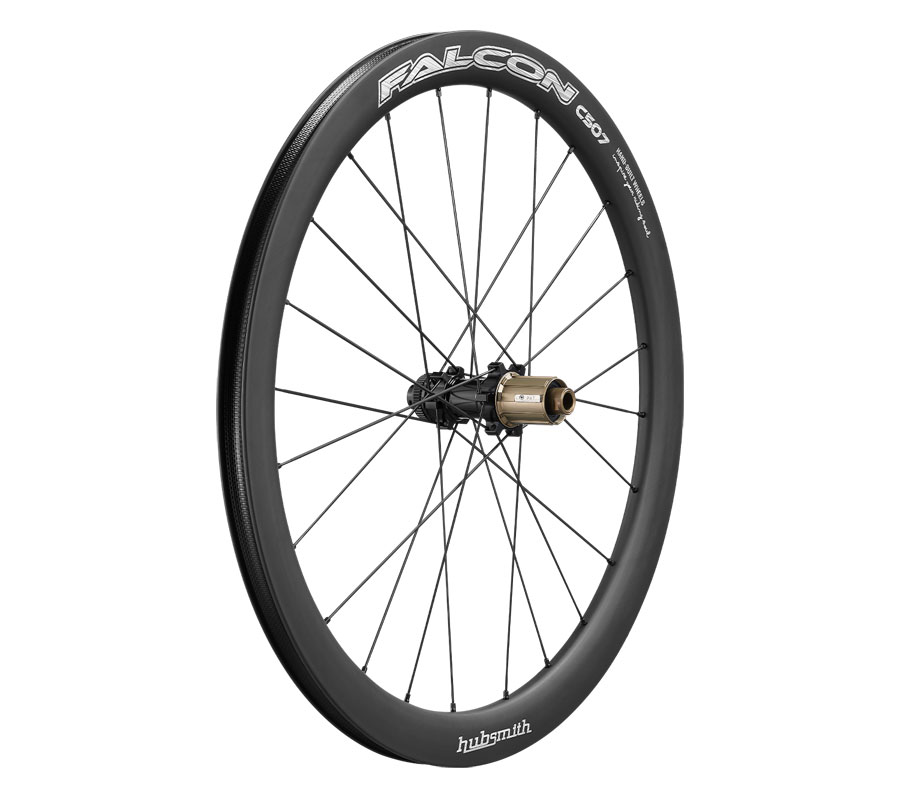

| Rear Hub | HubSmith, 135mm x 12mm thru-axle, XD-R driver, 48 POE, 28h |
| Rear Derailleur | Shimano Ultegra 8000S, 11 Speed |
| Cassette | e13 XCX 11 Speed (9-34t) |
| Shifter | Shimano RS-700 |
| Approximate Weight with Pedals | 20.4 lbs (9.248 kg) |
| Rear Hub | Alfine 11 SG-S7001-11 (20t) |
| Shifter | Shimano Alfine Rapidfire Plus SL-S700 |
| Chain Tensioner | Shimano Alfine CT-S500L |
| Approximate Weight with Pedals | 23.0 lbs (10.443 kg) |
| Rear Hub | HubSmith, 135mm x 12mm thru-axle, Shimano HG driver, 48 POE, 28h |
| Rear Sprocket | Andel, aluminum 16t |
| Chain Tensioner | Shimano Alfine CT-S500L |
| Approximate Weight with Pedals | 19.6 lbs (8.913 kg) |
| Rear Hub | HubSmith, 135mm x 12mm thru-axle, XD-R driver, 48 POE, 28h |
| Rear Derailleur | Shimano XTR, 11 Speed |
| Cassette | e13 XCX 11 Speed (9-42t) |
| Shifter | Shimano SLX |
| Approximate Weight with Pedals | 20.4 lbs (9.253 kg) |
| Rear Hub | HubSmith, 135mm x 12mm thru-axle, XD-R driver, 48 POE, 28h |
| Rear Derailleur | RED AXS (E1) RD-RED-E-E1, 12-SPEED |
| Cassette | RED AXS (E1) XG-1290, 12 speed (10-33t) |
| Shifter | EAGLE AXS POD ULTIMATE CONTROLLER C1 |
| Approximate Weight with Pedals | 20.3 lbs (9.210 kg) |
All specs include the following:
| Handlebar | Yavis, carbon fiber, 31.8mm, 580mm width |
| Brakes | Formula Cura X, hydraulic 2 piston calipers, carbon fiber levers, Ti screws |
| Brake Hose | Formula, Kevlar |
| Ashima ARO-10, IS mount, 160mm | |
| Shimano SP41 | |
| Saddle | Tioga Undercover Stratum, 285mm x 140mm, Carbon rails |
| Crankset | SRAM XX1 Eagle DUB, carbon, direct mount, 170mm |
| Bottom Bracket | SRAM DUB |
| Chainring | SRAM XX1 Eagle 36t, narrow-wide |
| Chain | YBN SLA1210-TI |
| Pedals | Wellgo QRD-I C238B |
| Rims | Stans Crest MK4 |
| Spokes | Pillar, double butted, stainless, black Ti plated |
| Nipples | Pillar, aluminum |
| Tires | Helix Ultralight 24" x 1.25" (ETRTO 32-507), 120 tpi, 55-60 psi, folding bead with puncture protection |
| Tubes | TPU Ultralight inner tube |
| Front Wheel Axle | Titanium Gr5 |
| Dropouts | Titanium Gr5 |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Bike and frame weights are based off pre-production frames at time of publication. Weights may vary in final production.
Max combined rider and cargo weight: 250lbs
Geometry & Gear Range: See here
Max tire size: 1.5" wide (507-40)
Helix supports the entire range of accessories including mud guards, front and rear racks, trailers, water bottles and more. Helix can be customized and is compatible with many standard bicycle components such as handlebars, derailleurs, cassettes and more. For more details, see our accessories page here or view the FAQ here.
We ship to almost any country. All orders are shipped by FedEx and are insured with tracking. You will recieve a shipping confirmation as soon as your order has shipped.
No tariffs for US customers. Helix is exempt as it is entirely made in Canada.
You may be required to pay customs, duties, taxes and VAT. Customers in USA, Mexico, Europe, Australia, Singapore, Vietnam, South Korea, Japan, Malaysia, Israel, New Zealand, Chile, Peru will not be required to pay duties due to free trade agreements between Canada those countries. Please be sure to check with your local tax and customs office for more details.
Helix Labs Inc. warrants that our frames, locks and folding components are free from defects in material and workmanship for a period of ten years. Upgrade parts and accessories made by Helix carry the same warranty. 3rd party components and parts carry their respective manufacturers warranty(s). Complete warranty details can be found here.
