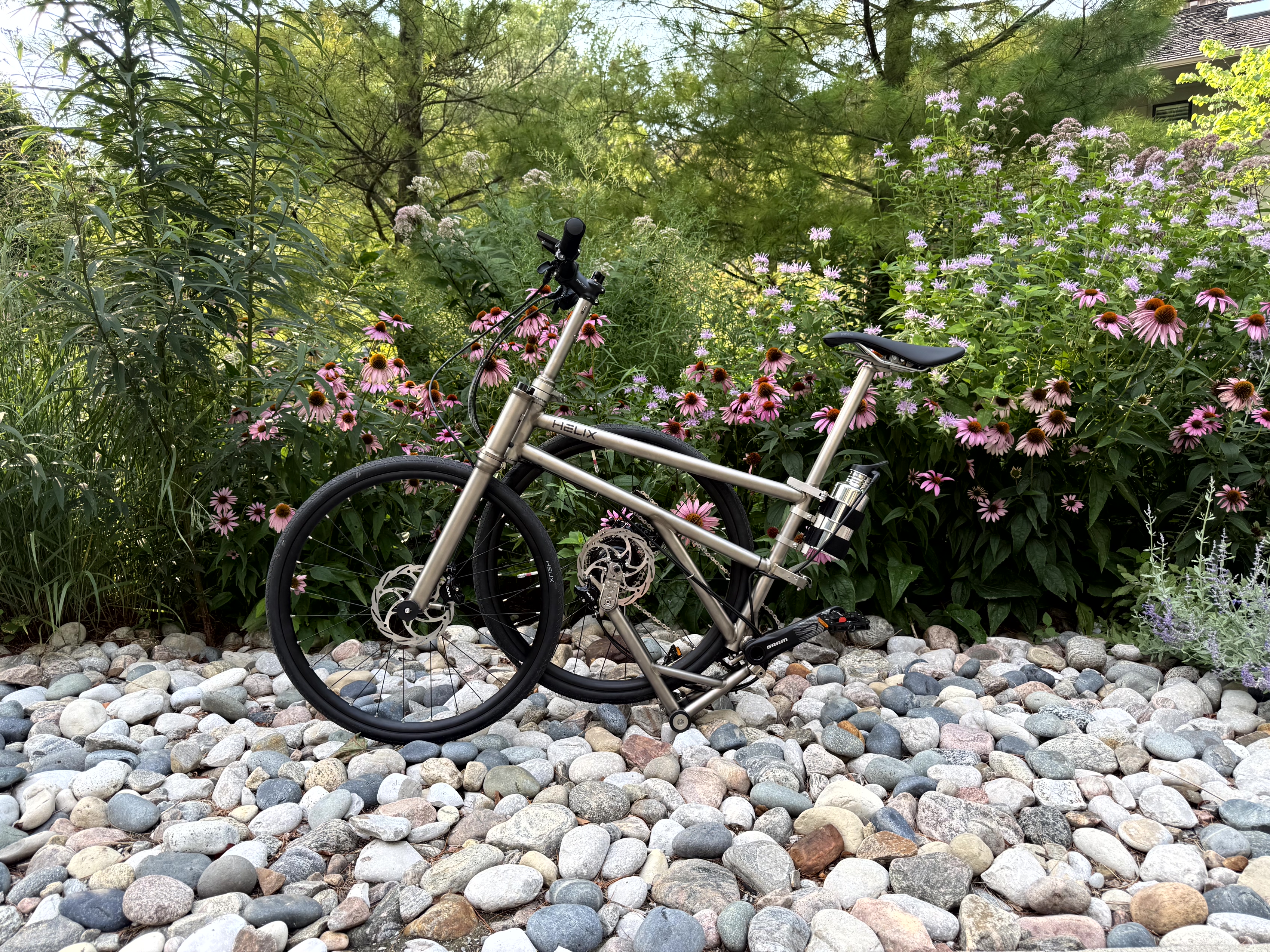

At only 27 lbs, it's the lightest, most capable folding e-bike ever made. The same patented titanium fold, now with electric power. This is the electric bike you've been waiting for.
Shop
Helix Electric is purpose built for long distances. Our pedal-assist system flattens hills
and eliminates headwinds, while maintaining the lightweight, ultra compact
signature of the titanium Helix. It is a refined, effortless ride for the city and beyond delivering power where you need it.
While most electric folding bikes are cumbersome and heavy, Helix Electric remains agile.
By leveraging a titanium frame, state-of-the-art engineering, and a curated selection of the
industry's lightest components, we've achieved a total weight of just 27 to 31 lbs.
That difference is felt every time you carry your bike up a flight of stairs, roll it through a subway station, or lift it into your trunk.
We've added the power, without the compromise.

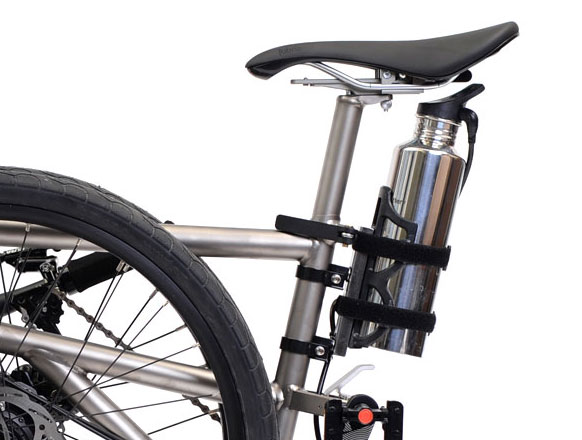

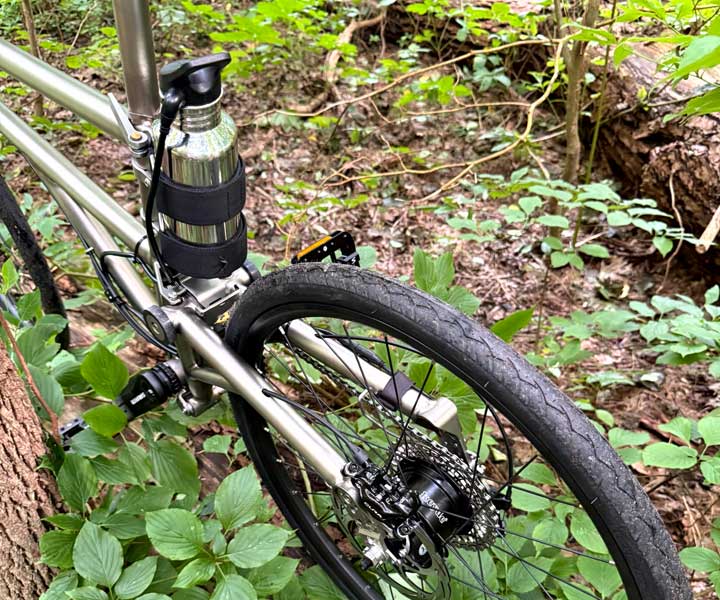

The Helix battery delivers up to 100km (60 miles) of range in a compact, lightweight form factor.
Unlike most e-bikes, our system is non-proprietary.
This gives you the freedom to use almost any 36V battery to suit your needs, whether
you want to reduce weight, extend your range, or use an airline-compliant battery for global travel.
• Type: Lithium-Ion
• Battery management system: Yes
• Voltage: 36v
• Rated Capacity: 7.2Ah
• Capacity: 252Wh
• Weight: 1.2Kg
• Est. Range: 100 KM/60 miles
• Charge time: 2-3 hours

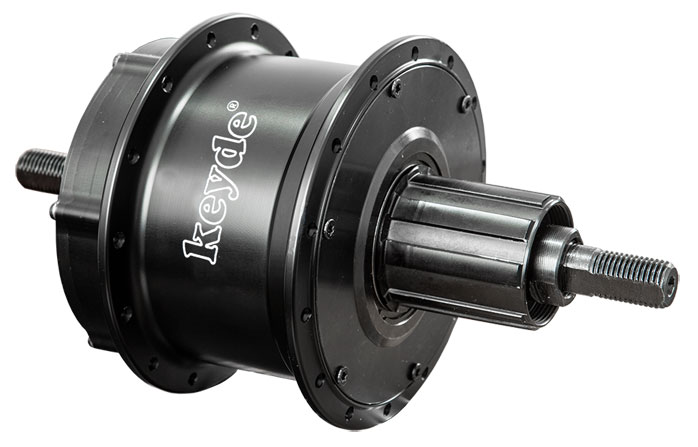

Helix features the Keyde P100, one of the lightest and most advanced hub motors in the world.
Weighing just 1.8kg, it delivers high-performance assist while maintaining the clean, minimalist lines of our titanium frame.
By integrating the controller and Bluetooth wireless connectivity directly into the hub,
they have eliminated messy cable routing making it the perfect match for a high end folding bike.
Future-Proof by Design
Most e-bikes are built as closed systems, rendering them obsolete as technology evolves. The Helix electric drive is
completely modular. As motors and batteries improve, your Helix
can be easily upgraded ensuring your investment remains at the cutting edge for years to come.
• Weight: 1.8Kg
• Rated Power: 250W
• Max Power: 500W
• Max Torque: 30Nm
• Max Cassette: 12 speed (Shimano HG)
• Efficiency: >89%
• IP rating: IP65
• Max Speed: 32km/h (20mph)

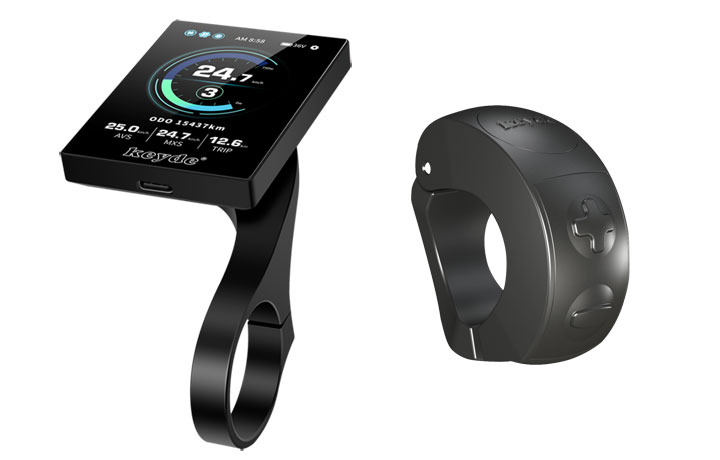

Helix Electric comes with a bar mount wireless bluetooth display and a bar mount speed controller.
You can adjust the assist level from either the wireless display screen or the push button controller.
BTD260 Wireless Display
• High quality 2.6" HD color touch screen (small bezels)
• Capacitive touch on/off button with auto-off
• Swipe up/down to change assist level (0-5)
• Long standby time
• USB-C for charging and firmware update
• Excellent visibility in sunlight with adjustable backlight
• Speed display: current speed, maximum speed and average speed
• Distance display: odometer, trip and cycling time
• Clock display: built-in battery, shutdown time retention
• Real-time display of output/assist power (Watts)
• Units selection: km or miles
BTB140 Push Button Controller
• Push button +/- to change assist level (0-5)
• Replaceable 140mAh battery
• Integrated solar charging
• 3 years standby time
• Automatic sleep & push any button to wake up

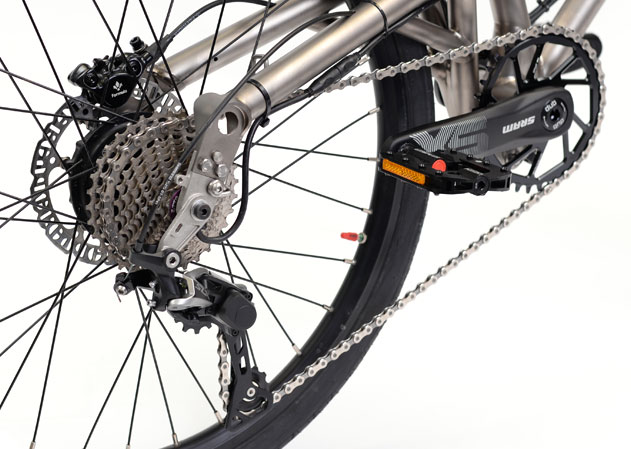

Unlike most folding e-bikes that use limited, proprietary gearing, Helix Electric features a standard Shimano HG driver.
This gives you the freedom to choose between 10, 11, or 12-speed derailleur systems. Having wide range gearing lets you further maximize your electric range.
Having a wide-range drivetrain also allows you to perfectly sync your pedaling with the motor, maximizing efficiency and extending your range.
With Helix, you never have to compromise on performance just because you need a folding bike. Choose your assist level, add your own power as needed, and ride without limits.
The Helix Electric drive system is powered by Keyde eBike Systems. With over
30 years of expertise, they are an established leader in e-bike innovation,
known for high-quality, gimmick-free engineering. Keyde is the perfect partner for the Helix philosophy of functional excellence.
Wireless Simplicity
Their revolutionary design uses Bluetooth to connect the display to the motor, reducing the entire
electric system to a single wire from the battery to the hub. The result is the cleanest aesthetic in the industry.
Lightweight & Compact
At just 1.8kg and 103mm in diameter, the hub is incredibly discreet. It is IP65 water-resistant,
beautifully manufactured, and delivers the high-quality experience you expect from a Helix-spec component.
